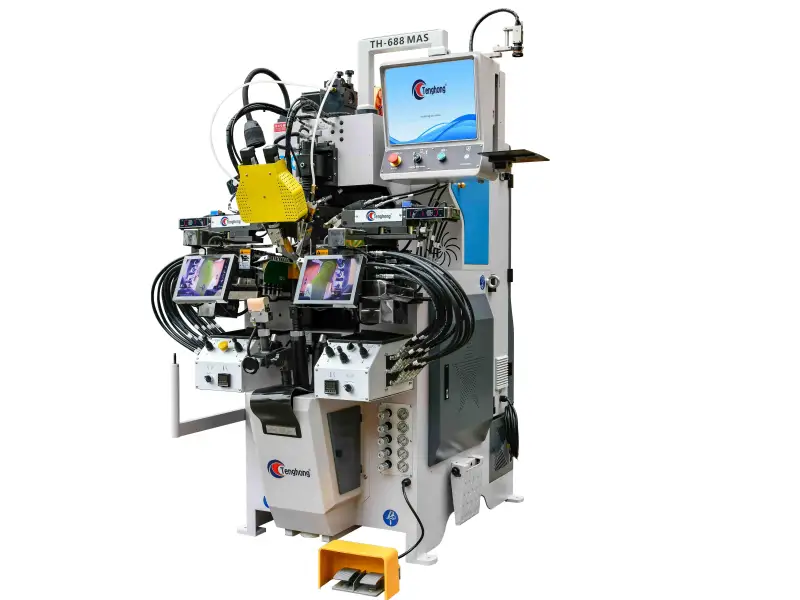

TH-688MAS is using the most advanced visual identification technology to format
the cementing locus and four-axis servo-controlled cementing system to control two
cement nozzles, by taking picture of the insole and and can quickly convert into a full
set of sizes.
● Program ability and Parameter Storage: (1) Programmable servo-controlled
cementing path; (2) The angle of side-pressing seat is controlled by motor-driven
mechanism according to different height of waist, the angle of side-pressing seat
can be memorized with automatic left/right swapping function to adjust the best
lasting position;(3) Electric adjustment position memory of the front and rear paws,
including the left and right Automatic switching of different clamping points on the
inner and outer waist of the foot, the function of pulling the claws forward and
inward, and then upward and forward(4) This machine can store at least 3000 sets of
shoe shape memories.
● The glue wiping stroke is adjusted by intuitive laser light irradiation point
adjustment. You only need to adjust the laser light point position to quickly adjust the
required glue length. When the light point position is reached, the knot length can be
set.
● Pincers have both left/right-pulling, up-pulling and forward-pulling functions. The
position of up-pulling of inner and outer sides can be set differently, with
programmable automatic left/right shoe swapping function.
● Pincers mechanism equipped automatically inward pulling with synchronized
adjustment for left/right pincer's pulling pressure and individually inch up-pulling
movement with automatically detection of inner waist or outer waist.
● TH-688MAS equipped unique designed cementing nozzles with program able
servo-controlled visual setting cementing path to simplify the lasting procedure and
reduce labour in gluing the vamp.
